Instant Evaluation from Your Browser

The world’s only physical

hardware on a real-time cloud

evaluation platform

Save the hustle of procurement and set-up of evaluation kits with our library of labs.

Explore labs

Discover the Ideal IC for Your Design with Ease

All

Aerospace & Defense

Artificial Intelligence

Automotive

Clock and Timing

Communication and Computing Infrastructure

Communications and Enterprise

Consumer

Consumer Electronics

Industrial

IoT

Key Technologies

Low-Power

Microcontrollers and Microprocessors

Power and Energy

Sensors

Add filters for each category level to find the best lab of your need

Sensors

Strain Gauge demo

US082 – Strain Gauge LoTC reference design is a remote evaluation platform based on the Renesas ZSSC3240 24-bit Sensor Signal Conditioner and EK-RA6M4 MCU kit. It enables accurate load-cell and strain-gauge measurements with real-time visualization, calibration, and environmental testing through a 24×7 remote lab setup.The solution combines precision analog signal conditioning, RA MCU processing, and cloud-enabled access for industrial, consumer, and IoT weighing applications.

Know More

Automotive

LV Motor Control

WS032 LV Motor Control is a 48 V three-phase BLDC/PMSM motor driver reference design based on the Renesas RL78/F24 automotive MCU with built-in Application Accelerator Unit (AAU) for hardware-assisted Field-Oriented Control (FOC), capable of driving motors up to 3 kW. It features RBA190N15YAPF-6UA04 N-channel MOSFETs in a half-bridge topology driven by HIP2211 gate drivers, GreenPAK-based overcurrent fault detection, flux-concentrator phase current sensing, Hall-sensor input, and CAN/Bluetooth interfaces with a companion GUI. Ideal for low-voltage traction applications such as e-scooters, e-bikes, and e-rickshaws.

Know More

HMI solution board with high-end 32bit MCU RX Family board layout

Industrial

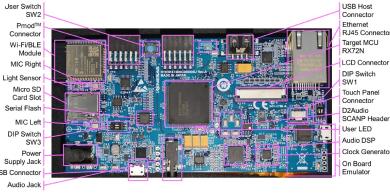

HMI solution board with high-end 32bit MCU RX Family

By using the Envision Kit with a 32-bit single-chip RX72N MCU on it, the demo can be operated via voice command, perform audio playback, and has a GUI display with WQVGA (480x272) on RTOS simultaneously. Renesas' original RXv3 core, which achieved a 5.90 CoreMark/MHz high score, delivers industry-leading performance, power efficiency and responsiveness. High CPU performance enables upgrade functionality even after product release and firmware can be downloaded from Renesas' website to program existing RX72N Envision Kits.

Know More

Power and Energy

USB-PD with Turbo boost

This board supports USB Power Delivery (USB-PD) Specification Revision v3.0 and supports USB Type-C. The R9A02G011 USB-PD controller performs authentication to accept USB Type-C. It works with input voltages of 5V to 20V and output voltages of 35V/45W, which is beyond USB-PD output voltage level.

Know More

Buck Boost Last Gasp Power Supply for Energy Meter board layout

Medical and Healthcare

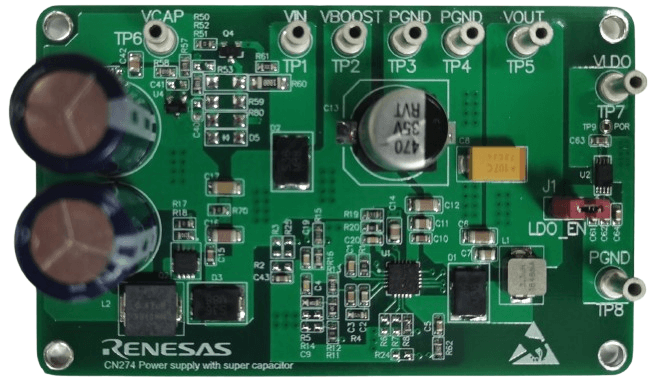

Buck Boost Last Gasp Power Supply for Energy Meter

This design uses an ISL85403 synchronous buck or boost-buck controller in the buck-boost configuration to extract power from a supercapacitor (as low as 0.1V).

Know More

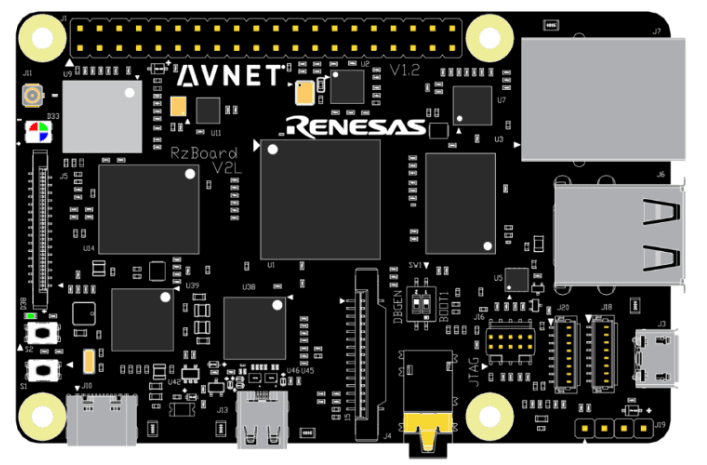

Single Board Computer- Avnet RZBoard V2L

This US157-1 is a compact embedded system optimized for AI/ML or embedded vision applications.

Know More

Household Smoke Detector Development Board board layout

Industrial

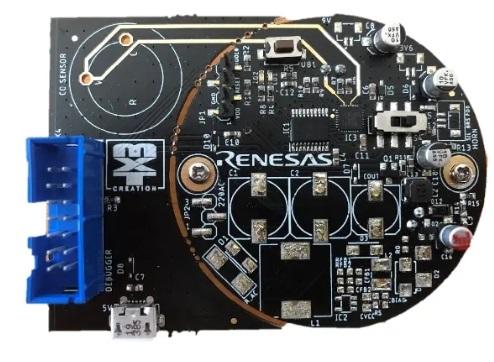

Household Smoke Detector Development Board

This solution uses a highly integrated RAA239101 low power analog front end (AFE) IC and includes all necessary peripherals and features required for a photoelectric smoke detector system, mainly focused on residential smoke detector designs. It is implemented using two key components, the RL78/G12 low power microcontroller and the RAA239101 photoelectric smoke detector AFE IC.

Know More

Sensors

GaN and MOSFET Gate Driver

AHV85110 is a self-powered isolated GaN FET driver with built-in bias supply, fast 50 ns propagation delay, high dv/dt immunity, and low EMI. Suited for high-frequency converters, EV chargers, and inverters and AMT49502 is an 80 V automotive half-bridge N-channel MOSFET driver with integrated charge pump, SPI programmability, current sensing, and diagnostics. Ideal for driving BLDC/DC motors, solenoids, and actuators.

Know More

Highly integrated 100W USB-PD Charger board layout

Automotive

Highly integrated 100W USB-PD Charger

The US274-100USBPDPOCZ is a USB PD evaluation board that supports DC input and output, aligning with USB PD 2.0, USB PD 3.1, and USB Type-C specifications. It uses the RAA489000, a digitally configurable buck-boost battery charger, and an integrated USB-C Port Controller (TCPC) for reverse buck, boost, and buck-boost operations.

Know More
